Gold supplier automatic industrial fabric SCCD cnc laser cutting machine co2 with Camera

FOB Reference Price:Get Latest Price
$10,317.00 - $15,555.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
DBX-1815
Power(W):
80-120W
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Acrylic, Leather, Textile, Crytal
Laser Type:
Fiber Laser
Cutting Area:
1800*1500MM
Cutting Speed:
50M/min
Graphic Format Supported:
AI, BMP, DWG, DXF, PLT, JPEG,CDR,TIF
Application:
Laser Cutting
Condition:
New
Cutting Thickness:
Materials
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
DSP
Place of Origin:
Guangdong, China
Brand Name:
DBX
Certification:
CE
Laser Source Brand:
Coherent
Laser Head Brand:
HIGHYAG
Servo Motor Brand:
Leadshine
Guiderail Brand:
THK
Control System Brand:
WEIHONG
Key Selling Points:
Multifunctional
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Free spare parts, Video technical support, Engineers available to service machinery overseas
Applicable Industries:
Garment Shops
Product name:
Laser Metal Cutting Machine
Camera pixels:
18 million
Min shaping character:
chinese character 2mm/ letter 1mm
operating temp.:
5-45 degree
gross power:
<3000W
weight:
1100kg
Laser power:
80w/100w/120w
resolution ratio:
0.025mm
repositioning accuracy:
+10%
Supply Ability
Supply Ability:
20 Set/Sets per Month laser cutting machine
Packaging & Delivery
Packaging Details
wooden packing
Port
guangzhou
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

Gold supplier automatic industrial fabric SCCD  laser cutting machine with Camera

Product Description

* Laser power: 10W or 120W

* Cutting speed: 800mm/s

* Working area 1800x1500mm

* Auto-feeding with camera

Fabric cutting machine 1800x1500mm Application Materials:

All kind of fabric, leather, wool cloth with soft nap, PU, genuine leather, Organic glass, Plastic, PVC, paper, wood, bamboo, rubber, resin ,ceramic, granite and other non-metallic.

Fabric Cutting Machine 1800x1500mm Pamarater
Model
DBX-SM1815-2
Working width
1800mm*1500mm
Resolution
0.025mm
Power supply
Ac220v±100%,50HZ/60HZ
Total power
<1800w
Working temperature
5℃-45℃
Working humidity
5%-80%
Support file format
BMP,GIF,JPEG,PCX,TGA,TIFF,PIT,CDR,DWG,DXF
Weight
1100kg
Size
2470*2170*1230MM/1800*1280*900MM/2800*560*1120MM



Fabric Cutting Machine model options:
Model
Working area(mm)
        Camera
Auto-feeding
     one/two heads
SM-1610
1600x1000
     With camera
 Without
auto-feeding
      1 head
SM-1815
1800x1500
     With camera
  With auto-feeding
      1 head
SM-1815
1800x1500
     With camera
   With auto-feeding
      2 heads





Product Overviews



Product Overview:

High speed automatic textile laser cutting machine, using high-definition digital SLR to one time realization the high precision imaging, which is including the large-format and multi-pattern, and avoid the error of splicing the image and the decline in image quality.

The characteristics of more design are flexible point positioning, mutual recognition of disposable cutting multiple pattern, automatic find the border to correct the flexible and variability image, perfect solve the problem caused by material deformation and stretching.

This machine adopting high speed, high precision stepper motor, automatic feed, automatically capture the border and cutting speed is 2.5 times than of the traditional, which is the best choice of modern high-speed fully automatic large enterprise.



Revolutionary innovation



1 Using Vision Positioning System, exactly to find the border and cutting

2 Using high-definition digital SLR to one time realization the high precision imaging

3 Automatically feeding the material

4 Automatically correct and find the border again when the prints was deformed

5 Using high-speed servo motor



Machine more details

1 Applying Canon HD SLR camera, can use for dealing with 1.8 m big pattern, and cut  along the fabric or leather edge, which can solve the problem cause by fabric and leather deformation and stretching, thus ensuring the precision of machine cutting

2 Imported Precision slider, High-speed and stable operation

3 Imported belts, there are 15 strips steel wires inside, have good flexibility and hard to be out of shape.

4 Lightweight laser head, move flexibly and fast

5 The device of automatic feeding and rolling materials, significantly increase productivity

6 Applying imported high-performance AC servo motor. The machine runs stably, precisely and fast.

7 Lightweight system, saves space and easy to operate.

Dedicated high-performance laser tube with the perfect optical system and stable laser power.

8 After machine painted, two gantry milling machine milling flat work surface to make precision reach±0.01mm, ensure that within 10 years of machine tool will not appear laser path deviation and make the machine more durable.

9 The camera on the top of machine will captures all patterns on the worktable one time, then with the help of applicable software, the patterns photo will be input into the computer, after DSP processing it, the machine will locate the pattern edge, thus the laser head will cut materials alone the edge of patterns.

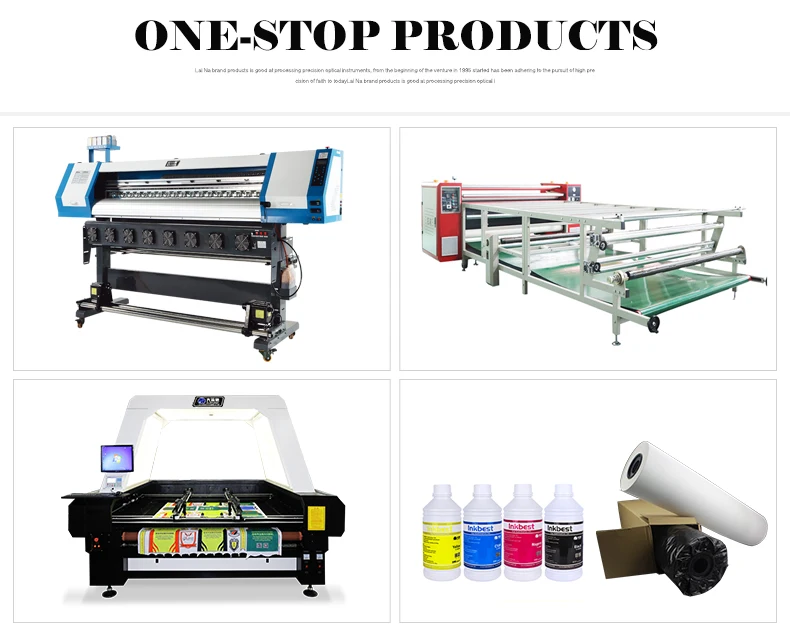

Related Products

Now is supply MUTOH sublimation printer,KOREAN/J-TECK/KIIAN sublimation ink, Heat Transfer Paper, Heat Press Machine and so on.

* Sublimation paper(non sticky or sticky with custom size and weight)

* Dark and light heat transfer paper(Solving the problem for cotton printing)

* Heat transfer vinyl/film(PVC, PU, Glitter, Flock, Reflective, Glow in dark, metallic, hologram etc)

* Sublimation ink(China INKBEST sulimation ink, Korea inktec sublimation ink, Italy JTeck sublimation ink, kiian ink)

* Heat press machine(roll to roll kinbd, flatbed kind,)

* Eco solvent printer, UV Leather printer, DTG printer.

* Textile sublimation printing services etc.



Company Culture



Guangzhou Elephant Digital Technology Co.,Ltd

Founded in 2004, Guangzhou Elephant Digital Technology Co.,Ltd. foucuses on one-step digital printing soulution for 14 years and is leading in China. Currently, the company's prodcuts and solution are mainly used in textiles, clothing, home, advertising gifts, personalized design and othe related fields.



Factory Profile
Square: 1500 m2
Established: More 10 years experienced
Employee: Excellent team , More than 50 states (included workers designer engineer and salesperson )



Roll to roll printer  warehouse

Professional quality inspection   we have special personnel respnsible for the system quality inspection  system, to ensure the each product quality,strict inplementation of 24 hours driving test



Packaging & Shipping

Fabric cutting machine 1800x1500mm packing
1. There are several iron bars under the wooden package box.
2. Water chiller and Exhausted Fan fix on the bottom board of the wooden box.
3.Long nail to fix the wooden box, double lays reinforce.
4. Safety Marks paste on the wooden box.
5. Foam and film protect the acrylic laser cutting machine.
6.7Check and make sure its fix and stable before loading.

 Trial / Sample Order and order in stock will be shipped about 7 days after payment arrive.
